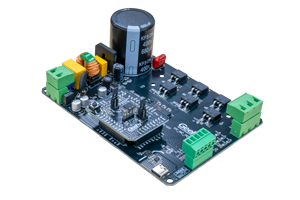

G32F031 High-Voltage Motor Evaluation Board
It supports 85V to 265V high-voltage applications. Engineers can quickly test product functions without building a hardware setup from scratch, making development and algorithm porting faster and easier.
Performance
-
Electrical specifications: 85V–265V AC wide-voltage input, maximum power 300W
Supported motor types: BLDC, PMSM
Supported encoder types: Hall, optical, magnetic
Communication interface: UART
Current sampling methods: Single/dual shunt, three-phase back-EMF
Resource
Software Development Tools
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| G32F031_DAL_SDK | SDK | V1.0.2 | zip | 16.99 MB | June 09, 2026 |
| G32F031_DFP Pack | Pack | V1.0.1 | pack | 670.79 KB | June 09, 2026 |
| G32F031_Hv_hall_FOC | Demo | - | 160.36 KB | May 12, 2026 | |
| G32F031_Hv_Sensorless_FOC | Demo | - | 160.36 KB | May 12, 2026 |
