Memory and interface
- Scalable EEPROM
Power supply
- Input voltage range: 4.5V~40V
12-Channel Precision High-Side Current Output
-
Channel current up to 100mA set by resistor
-
2 global, 6 independent current settings
- High current accuracy
Communication Peripherals
-
Up to 2MHz clock frequency
-
Supports connection of up to 16 devices via UART
-
Transmits up to 8 bytes of data per frame
- 5V LDO output powers the CAN transceiver
12 Independent PWM Dimming Channels
- Configurable PWM frequency up to 20 kHz
-
Linear and exponential dimming methods
Communication Watchdog and CRC Calculation
LED Open Circuit/Short Circuit Detection and Individual LED Short Circuit Diagnosis
High Reliability
-
AEC-Q100 Grade 1
- Operating Temperature Range: -40°C to 125°C
ESD
- HBM=±6000V
-
CDM=±2000V

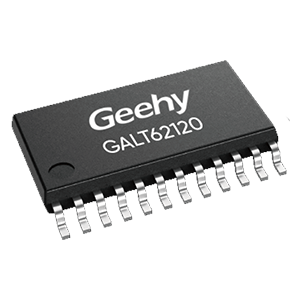

Package
- HTSSOP24
